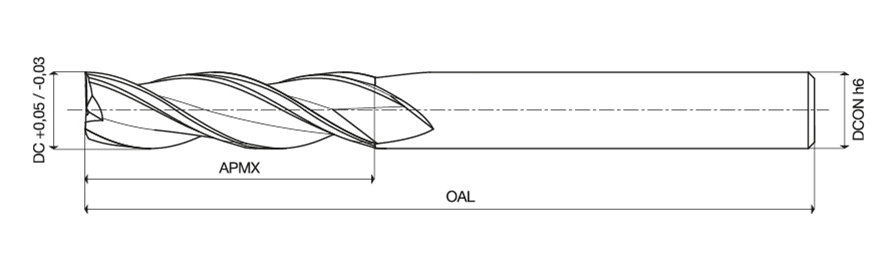

| Cutting Diameter (DC) | 9 mm | Application | | Pocketing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Depth of Cut Maximum (APMX) | 40 mm | Body Material | Steel |
| Overall Length (OAL) | 90 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Unit | M |
| End Shape | Square |
Product Features
| COO | Italy | FamilyName | 14820 |
| ItemRemark | click here for cutting data | BrandName | UOP |
Shipping Info
Weight per item
0.108
Name

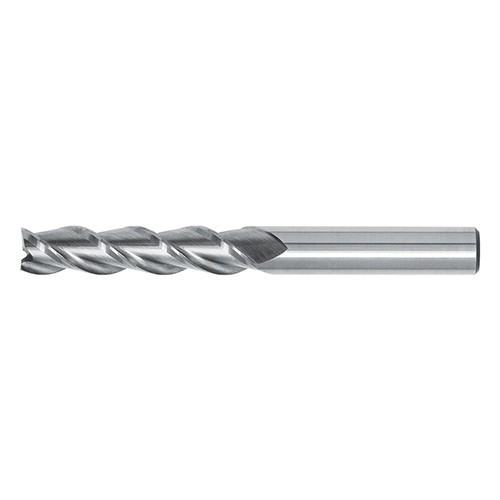

Square & Corner Radius End Mills
FamilyName
14820
BrandName
UOP
