HM390 ETC D1.00-4MMT15-07
90° endmills with a MULTI-MASTER threaded adaptation carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges.
Price: Log in For Price

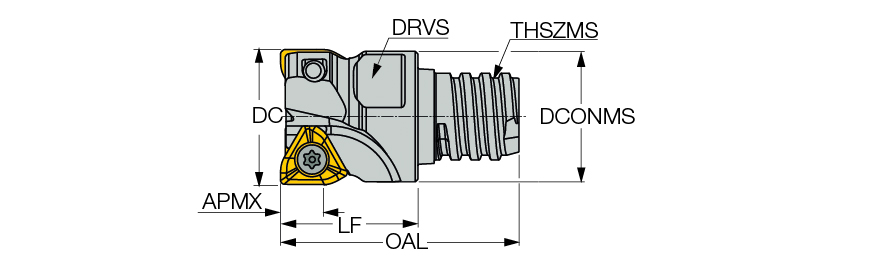

| Cutting Diameter (DC/DCX) | 1″ | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Cutting Diameter (DC) | 1″ | Drive Size (DRVS) | 0.787″ |
| Cutting Item Count (CICT) | 4 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 0.2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 1.67″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.941″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TCKT 0703PCTR | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 1″ | Unit | I |
| Tool Type | 90° indexable endmills |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded adaptation carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges. | FamilyName | HM390 ETC-MM |
| Remarks | Insert clamping screw must be lubricated every indexing. Tightening torque .66 lbfxft. For adaptation click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3042
Name
Indexable End Mills
FamilyName
HM390 ETC-MM
BrandName
Iscar
