MTECS 0808C25 1.5MJ IC908
Small diameter short solid carbide MJ-type profile threading endmills with coolant holes directed to the cutting edges. Used for internal J-type thread length of up to 2.5xD in the aerospace industry and for other applications.
Price: Log in For Price

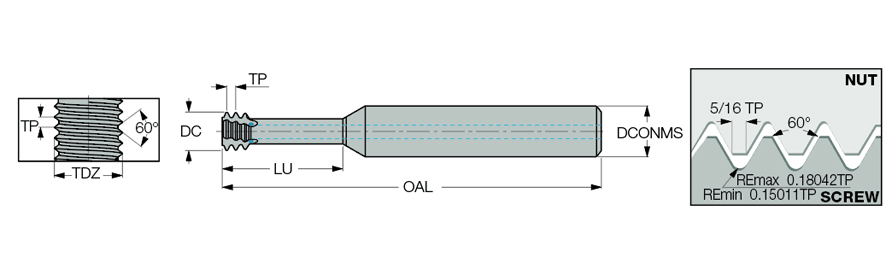

| Thread Pitch (TP) | 1.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | MJ |THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | 25 mm |
| Cutting Diameter (DC) | 8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 64 mm | Grade | IC908 |
| Flute Count (NOF) | 3 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | MJ60 |
| Application | | Internal Thread Milling | | Unit | M |
Product Features
| Family Description | Small diameter short solid carbide MJ-type profile threading endmills with coolant holes directed to the cutting edges. Used for internal J-type thread length of up to 2.5xD in the aerospace industry and for other applications. | COO | Israel |
Shipping Info
Weight per item
0.0390
