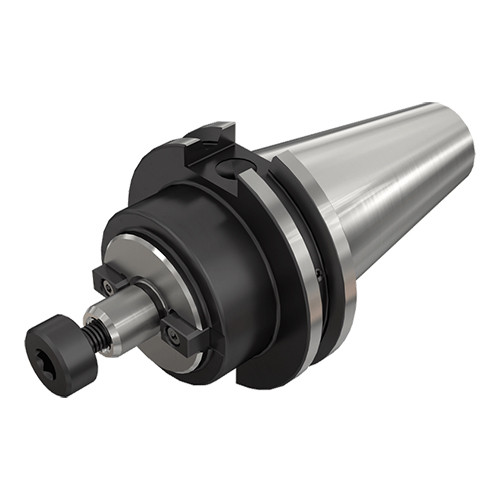

CAT50 SEM 3/4X1.500
ISO 3937 Shell mill holders with Caterpillar form ADB tapered shanks.
Price: Log in For Price

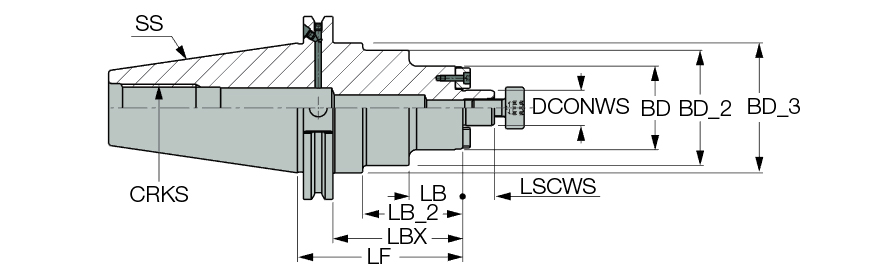

| Connection Diameter Machine Side (DCONMS) | 50″ | Tool Type | DIN 69871 |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Measurement Type | Inch |
| Shank Size (SS) | 50 | Body Material | Steel |
| Functional Length (LF) | 1-1/2″ | Connection Code Machine Side (CCMS) | CAT |
| Coolant Supply Property (CSP) | External | Unit | I |
| Clamping Length Workpiece Side (LSCWS) | 0.669″ |
Product Features
| Family Description | ISO 3937 Shell mill holders with Caterpillar form ADB tapered shanks. | FamilyName | CAT-SEM |
| COO | Turkey | BrandName | Iscar |
Shipping Info
Weight per item
7.2312
Name
Shell Mill Holders
FamilyName
CAT-SEM
BrandName
Iscar
