GFI ST 3/4 ER20

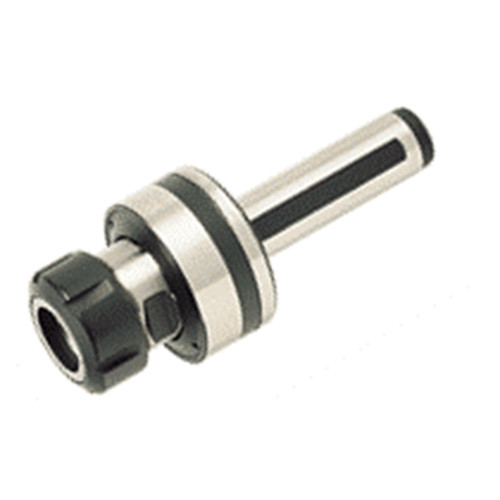

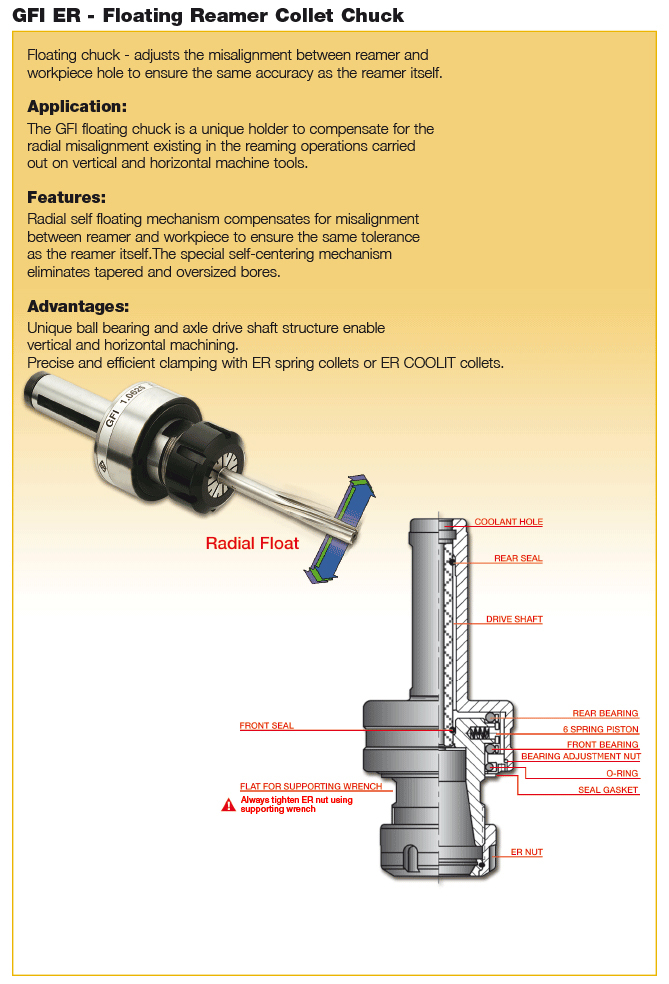

Floating reamer DIN 6499 collet chucks and cylindrical shanks with a clamping flat.
Price: Log in For Price

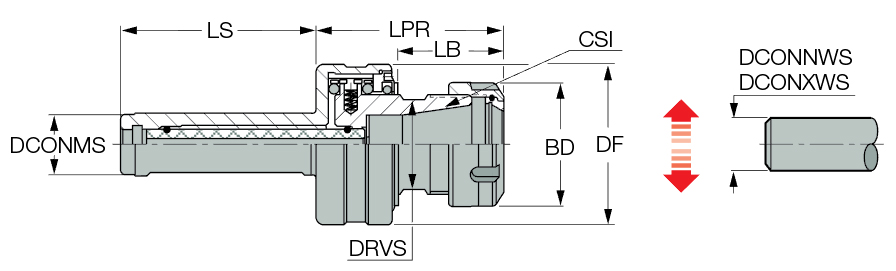

| Connection Size (CSI) | ER20 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.514″ |
| Body Diameter (BD) | 1.339″ | Body Length (LB) | 1.358″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Flange Diameter (DF) | 1.969″ | Shank Length (LS) | 2.559″ |
| Protruding Length (LPR) | 2.185″ | Overall Length (OAL) | 4.744″ |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
| Radial Float (RFI) | 0.02″ | Unit | I |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.041″ |
Product Features
| Family Description | Floating reamer DIN 6499 collet chucks and cylindrical shanks with a clamping flat. | FamilyName | GFI ST-ER |
| Remarks | Maximum 2000 RPM! For Adaptation Click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.2324
Name
Reamer Holders
FamilyName
GFI ST-ER
BrandName
Iscar
