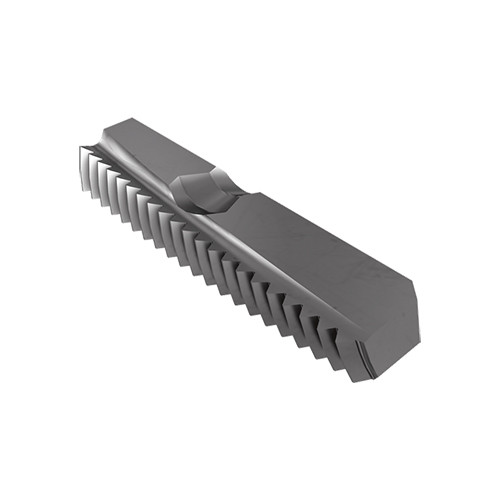

MTH 23 E 8 UN IC908
Helical thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) external full profile threads. Application: general industry.
Price: Log in For Price
| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 8 | Coating | TiAlN |

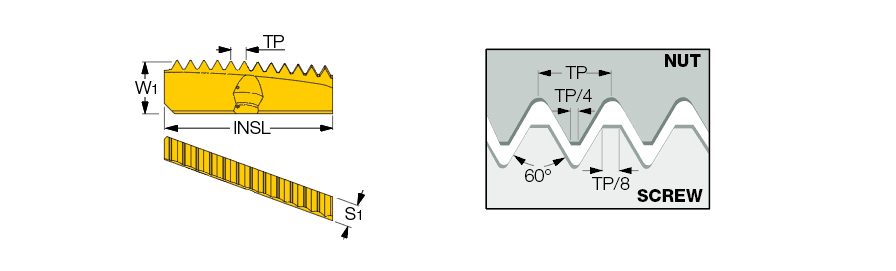

| Insert Length (INSL) | 27 mm | Tool Type | Threading Regular Inserts |
| Insert Width (W1) | 8 mm | Measurement Type | Metric |
| Insert Thickness Total (S1) | 3.5 mm | Body Material | Carbide |
| Application | | External Thread Milling | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | EXT |
| Grade | IC908 | Unit | M |
Product Features
| Family Description | Helical thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) external full profile threads. Application: general industry. | COO | Israel |
| Remarks | Used for UN, UNC, UNF, UNEF and UNS thread profiles For cutting speed recommendations, Click on More Info |
