DDC-EA 33.31-36.20

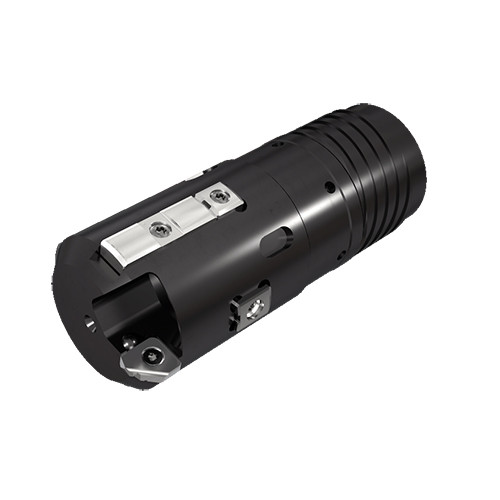

Double tube counterboring drills with outer 4-start thread connection, cartridges and adjustable diameter (25-40 mm dia.).
Price: Log in For Price

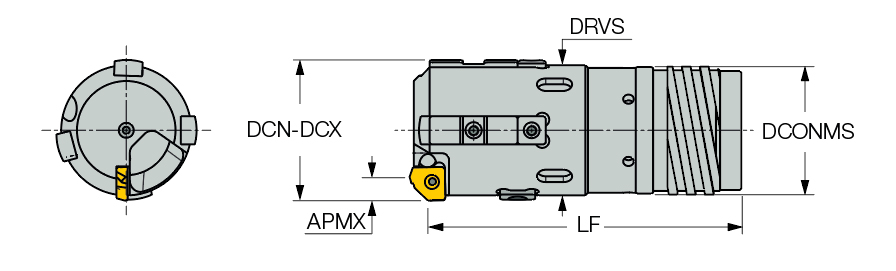

| Connection Diameter Machine Side (DCONMS) | 30 mm | Application | | Deep Drilling | |
| Flute Count (NOF) | 1 | Depth of Cut Maximum (APMX) | 2.8 mm |
| Cutting Diameter Maximum (DCX) | 36.2 mm | Drive Size (DRVS) | 34 mm |
| Cutting Diameter Minimum (DCN) | 33.31 mm | Functional Length (LF) | 75.5 mm |
| Body Material | Steel | Unit | M |
| Measurement Type | Metric |
Product Features
| Family Description | Double tube counterboring drills with outer 4-start thread connection, cartridges and adjustable diameter (25-40 mm dia.). | COO | Japan |

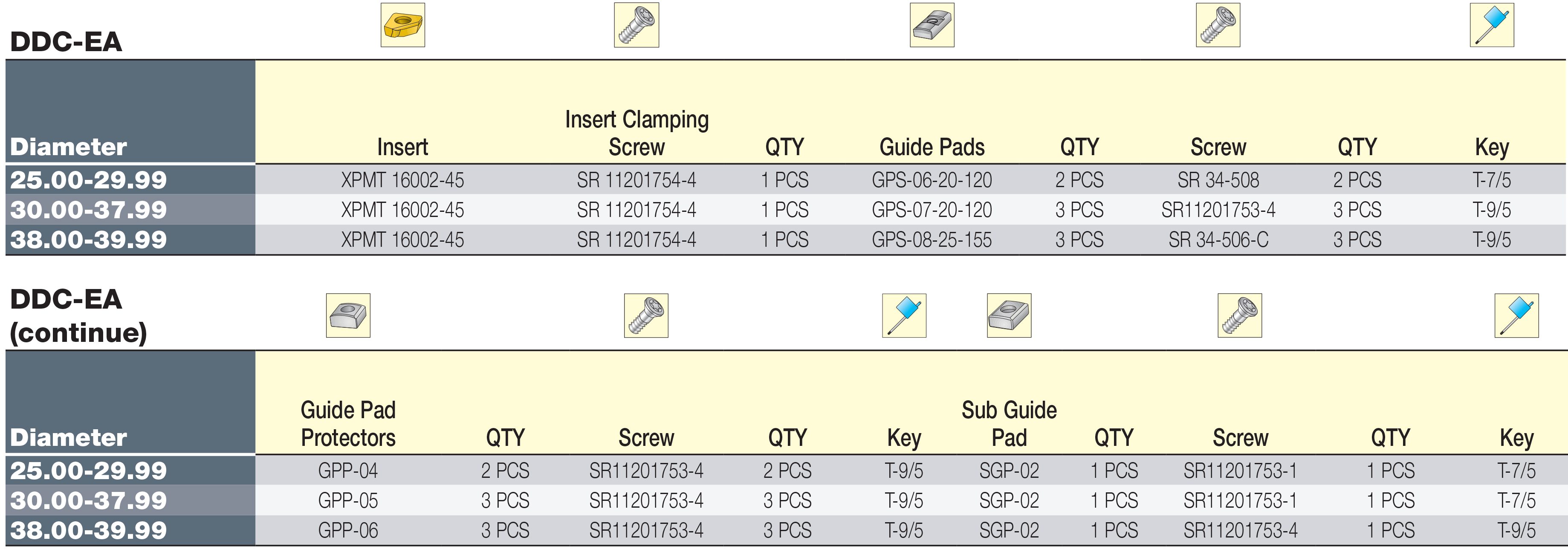

| Remarks | For spare parts and insert information, click on More Info Ordering example: DDC-EA 30.55 |
